Product details

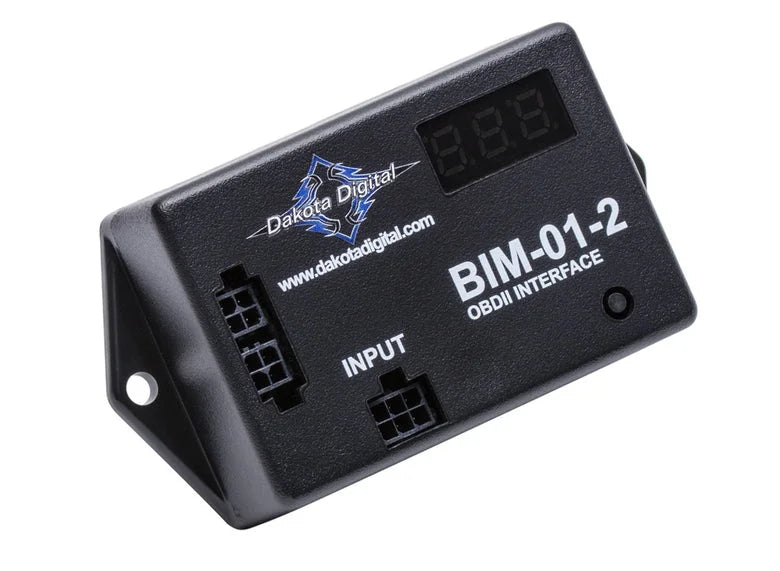

Description The BIM-01-2OBD-II (J1850/CAN) Interface allows you to plug directlyinto the engine diagnostic port, extractingengine and transmission data from the vehicle’s computer (ECM). The BIM-01-2will collect and output the following information to Dakota Digital Instrument Systems * Available on most vehicles (see below): *** Speedometer Tachometer Engine Temperature Check Engine Indicator Vehicle specific: **** Intake Air Temperature Transmission Temperature Ambient Air Temperature Gear Position Oil Pressure Boost Pressure.
Due tothe variousfactory and modified ECM’s, additional data including (Intake Temp,TransmissionTemp, Ambient Air Temp, Oil Pressure, and Gear Position) may be available, but will vary from application to application. Dakota Digital cannot guarantee the presence or accuracyof the Coolant Temp, Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, Boost or Gear Position displays since this is a functionof the ECM and matching OEM functional sensors.
*The BIM-01-2is designed to decode the information provided by the ECM through OBD-II and supply this information to theRTX, HDX, VHX and VFD3systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number394193adaptor harness.Earlier instrument systems with an aluminum control module are notcapable ofBIMconnectivity **The BIM-01-2is designed for J1850 and CAN OBD protocols only. Compatible with OBDII protocols SAE J1850 VPW, SAE J1850 PWM and ISO 15765 CAN 500k 11 bit identifiers that follow the SAE J1979 PID protocol.
Does not function with Bosch-built ECUs, found in 2004-2007 Duramax applications. If you are concerned about compatibility with your vehicle please contact our sales or tech department. ****GM Connect & Cruise packages do not transmit the gear position data, preventing the BIM-01-2 from acquiring this information.
